Fold-A-Way Bumper Cranes

Step 1

Telescoping Boom Cranes or Fold-A-Way Bumper Cranes?

Step 1: Decide what type of crane would best suit your needs...

Telescoping Boom Cranes:

Can be mounted to any solid mobile or stationary platform.
Longer boom reach (multiple boom length & angle settings)
AC, DC, & Manual Hand-Crank Models

Fold-A-Way Bumper Cranes:

When folded down, crane is totally concealed in bumper and out of your way.
Heavy Duty bumper improves safety to you and your vehicle even when crane is not in use.

[X]

Step 2

Telescoping Boom Cranes or Fold-A-Way Bumper Cranes?

Step 2. Type of Vehicle for application?

Our different Series of cranes are categorized to various types of vehicle applications.

Telescoping Boom Cranes, skip to Step 3.

Fold-A-Way Bumper Cranes

A-Series: For Pickups (Mini, Mid, & Full Size)
S-Series: For Utility Vehicles (Service Bodies, Flatbeds, Cube & Sprinter Vans)
U-Series: For Utility Vehicles (Service Bodies, Flatbeds, & Cube Vans)
V-Series: For Vans (GM Savanna, Express & Ford Econoline Cargo Vans)

If your type of vehicle is listed in multiple Series, see the specifications on each product's page to compare the differences or call us for our expert opinion.

[X]

Step 3

Telescoping Boom Cranes or Fold-A-Way Bumper Cranes?

Step 3: How much Lifting Capacity do you require?

Lastly, the most critical factor in deciding which crane you need depends on the maximum weight you plan on lifting.

Within each crane Series, we have various models of different lifting capacities. Each crane is structurally designed to operate to that capacity and no more than that capacity. Thus, this becomes the most crucial element in deciding which specific crane is right for you.

[X]

Need help?

Feel free to contact us
for personal assistance!

A, S, T & V-Series Options & Accessories

Part #	Description	(Click to Enlarge)

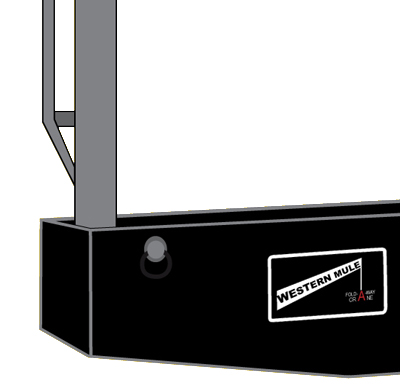

WO-02	LEFT SIDE (STREET SIDE) MAST POSITION: *FACTORY INSTALLED ONLY!* The Cranes mast can be placed on the street side rather than the standard curbside of the bumper

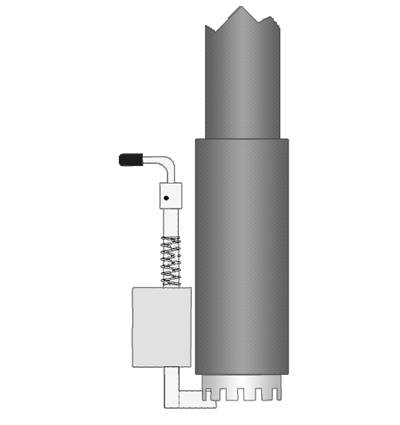

WO-14	ROTATION LOCK: FACTORY INSTALLED ONLY! A positive locking device for securing the boom at 12-fixed points of rotation while operating the crane.
WO-15	ROTATION STOPS: FACTORY INSTALLED ONLY! For limiting rotation of the boom. Stops will be strategically placed to prevent contact of the load with the inner or outer walls of the vehicle.

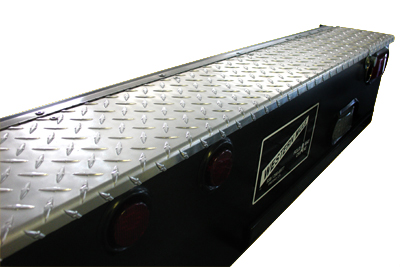

WO-16	ALUMINUM COVER: A two-piece Aluminum Diamond Plate Cover, with a continuous stainless steel hinge attached with stainless steel rivets and magnetic latch to secure the cover when closed.

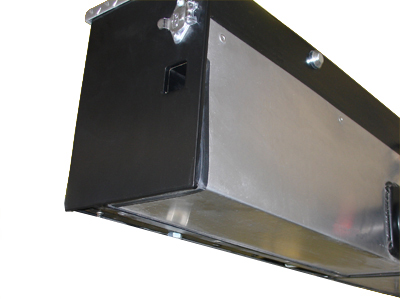

WO-17	LOWER ENCLOSURE: FACTORY INSTALLED ONLY! A three-piece factory installed aluminum protective cover for the bottom side of the bumper. This cover is beneficial in adverse climatic conditions. The cover will help in keeping the unit clean and free of mud, dirt, snow, etc.

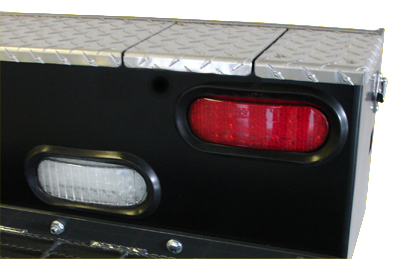

WO-18	TAIL LIGHTS: FACTORY INSTALLED ONLY! The L.E.D. tail lights shall be sealed beam combination stop/tail/turn lights, flush mounted in a heavy duty rubber shock mount. Pre-wired into the bumper.
WO-19	BACKUP LIGHTS: FACTORY INSTALLED ONLY! The L.E.D. backup lights shall be sealed beam lights, flush mounted in a heavy duty rubber shock mount. The bulb shall be rated at a min. of 32 candlepower. Pre-wired into the bumper.

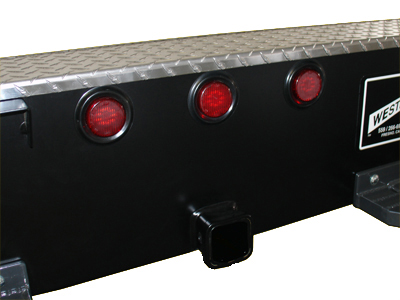

WO-21	REAR IDENTIFICATION LAMPS: FACTORY INSTALLED ONLY! Three (3) L.E.D. sealed beam lights shall be flush mounted in a heavy duty rubber grommet in the upper center of the bumper. (DOT required on rear of vehicles 80" wide or greater)

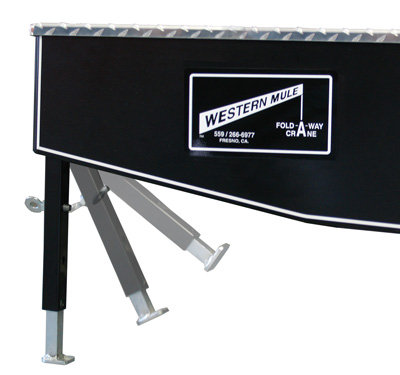

WO-32	LEFT SIDE SWING DOWN OUTRIGGER: FACTORY INSTALLED ONLY! Optional Left Side Swing Down Outrigger for light duty vehicles and vans, to add increased stability to the vehicle. Western Mule A, S, & V Series Cranes are already equipped with factory installed Right Side Swing Down Outriggers as standard equipment.

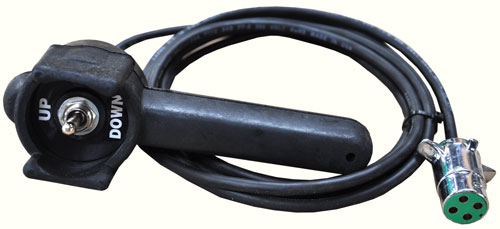

WO-38	15' PENDANT CONTROLL: Optional 15' Hand Held Pendant Control. (Standard 10' Pendant included with crane)
WO-39	WIRELESS REMOTE CONTROLL: Compact, water resistant & equipped with a belt clip. A fifty foot range and a long battery life provide you with the freedom to move about while not being tethered to the crane.

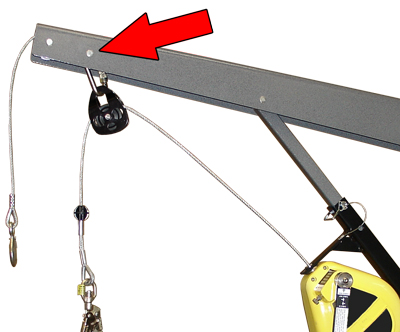

WO-41	FALL ARRESTOR ATTACHMENT ANCHOR POINT: Attachment point required for suspending a personnel fall arresting device. (Required when being used as a Man-Lift)

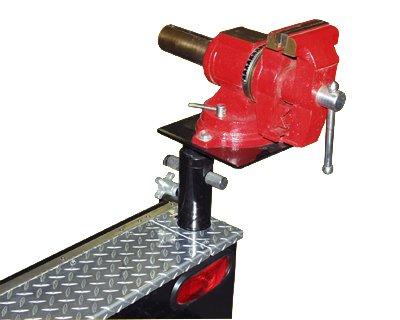

WO-60	VISE MOUNT: *FACTORY INSTALLED ONLY!* A Swivel Vise Mount integrated into the rear corner of the bumper. (Available for most S-Series Cranes. Vise not included)

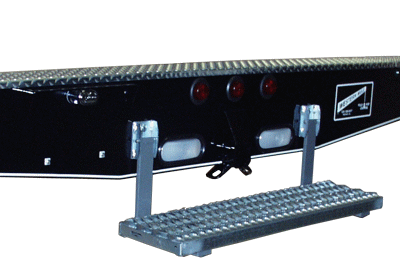

WO-91	FOLD-DOWN REAR STEP: FACTORY INSTALLED ONLY! A Fold-Down Heavy Duty Grip Strut Tread Rear Step. (Available for most S-Series Cranes)

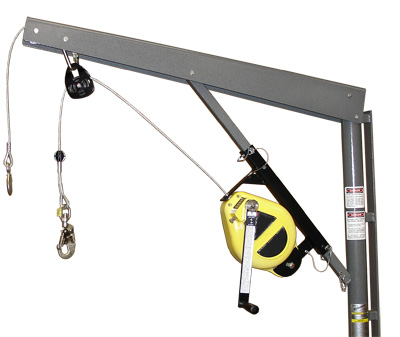

WO-CSR	CONFINED SPACE RESCUE & RECOVERY SYSTEM: FACTORY INSTALLED ONLY! Required when using the crane as a man-lift for confined space activities. This option includes WO-14 Rotation Lock, WO-41 Fall Arrestor Boom Attachment Anchor Pin, WO-23 65' x 3/16" Galvanized lifting Cable (1350 lb cap. models only. 2000 lb cap. models ship standard with 50' x 7/32"), R50G Quick attached hand crank operated recovery winch/fall arrestor with 50' lifeline.

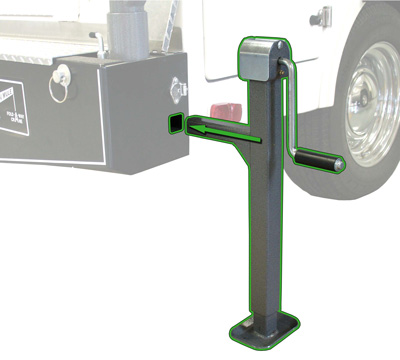

WA-15	REMOVABLE CRANK DOWN OUTRIGGER: A Removable Crank Down Outrigger for added stability and leveling of crane. Useful when crane is used on unleveled/uneven ground.

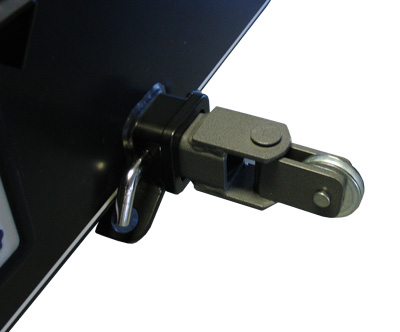

WA-30	WINCHING BLOCK: This accessory is necessary if you desire to use your Western Mule Crane for winching of the vehicle or to winch loads to the vehicle.

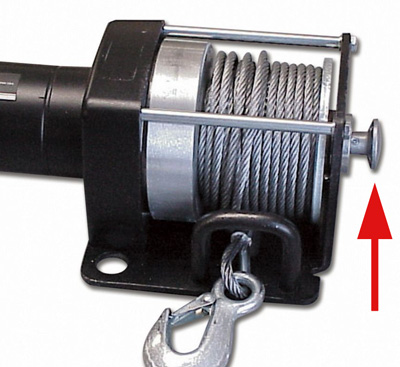

Ask Us About This Option	CABLE LENGTH: Optional cable lengths are available to meet customer specific requirements. Lengths from 25 feet to 100 feet are available. (Contact factory for maximum available cable capacities) LIFTING LINE: Optional Stainless Steel Cable and Di-Electric Rope are available.

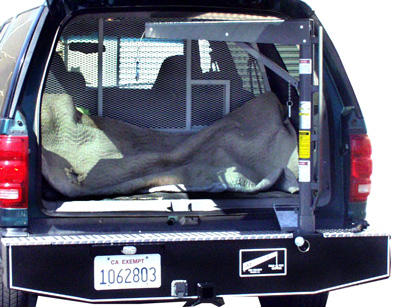

Ask Us About This Option	MAST POSITION AND BOOM HEIGHT: FACTORY INSTALLED ONLY! The Mast and Boom Height can be factory altered to meet a customer's unique lifting requirements. (contact factory for more information)
	NOTE: CUSTOM CONFIGURATIONS AND OPTIONS ARE AVAILABLE UPON REQUEST
